NON-WELDED TECHNOLOGY
37°Flaring Connections：
· No welding required, which saves the subsequent pickling, inspection and other processes, and greatly shorten the pipeline cleaning time,construction easier and reduce labor costs.
· "SAE 37°" is a new range of flared flange products offering a low-cost alternative to tube fittings which previously required welding.
· The highest working pressure up to 420 bar.
· The product conforms to the SAE J518 / IS06162, IS06164 standards.
· The engineering vessels,metallurgy, customers repeatedly used in many industries, without leakage.

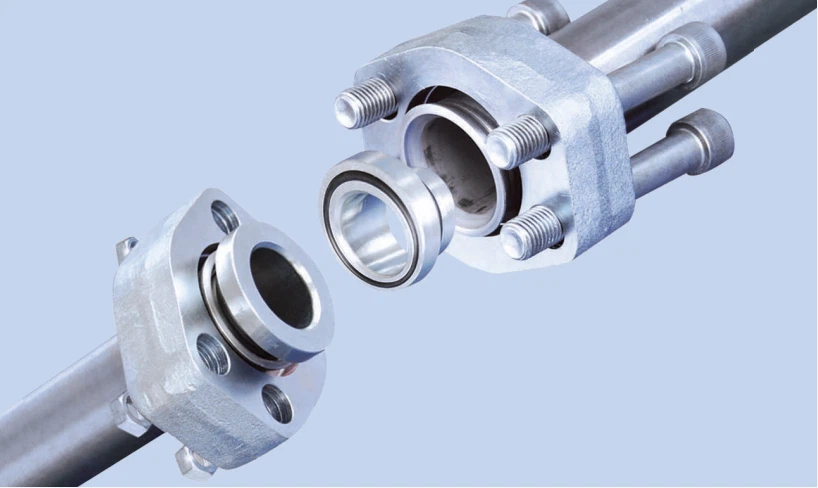

Walform Connections:
· Using EATON Walform professional technical production, has several decades of practical application of engineering machinery and other industries, reliable connection, ensure the leakDouble seal design, soft and hard, high pressure, working pressure up to 640 bar
· Fewer parts, easy to install, install torque is small, while guarantee the reliability, has a low installation and maintenance costs
· Without welding, saves the subsequent pickling, inspection and other processes, and greatly shorten the pipeline cleaning time, construction simple, lower labor costs
· The connection type has been the world's big society approval: ABS,DNV,CCS.

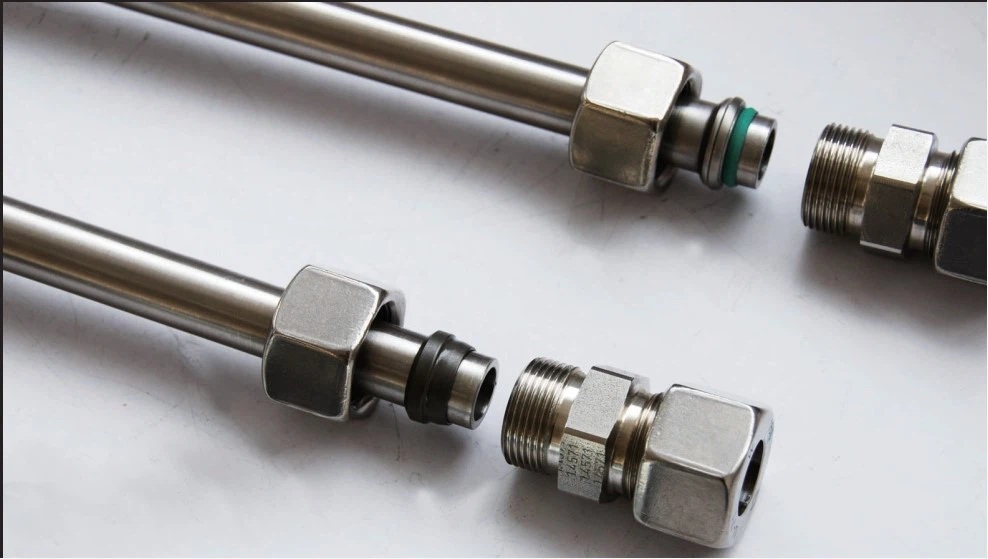

Cutting Ring Connections:
· No welding required.Owing to its ideal shape, the fitting ensures safeand tight tube connection.
· During assembly of the fitting, the two cuttinge dges of the cutting ring penetrate into the tube creating a safe connection.
· During assembly of the fitting, the two cuttinge dges of the cutting ring penetrate into the tube creating a safe connection.
· At the same time, the cone of the nut deforms the cutting ring shoulder so that the tube is tightly clamped and able to absorb bending stresses.
· Radial and axial sealing is assumed by the ring's being wedge between tube and fitting body.
· A progressively increasing tightening torque guarantees high safety of assembly.
· Cutting ring pipe fittings can be disassembled andreassembled as often as necessary.
· Radial and axial sealing is assumed by the ring's being wedge between tube and fitting body.
· A progressively increasing tightening torque guarantees high safety of assembly.
· Cutting ring pipe fittings can be disassembled andreassembled as often as necessary.
Retaining ring connection：
· No welding required, saves the subsequent pickling, inspection and other processes, and greatly shorten the pipeline cleaning time.construction easier and reduce labor costs.
· It is the best substitute for before high pressure welding flange , and perfectly matches with SAE-J518 standard flange.
· To keep the ring system for thicker wall thickness greater than 6 mm high pressure pipeline system provides the ideal solution. Keep ring system including from 26-355 - mm all size.
· The product conforms to the SAE J518 / IS06162, IS06164 standards
· The connection type has been the world's big society approval: ABS,DNV,CCS.
· The engineering vessels, metallurgy, customers repeatedly used in many industries, such as authentication without leakage.
If you have any enquiry about quotation or need details about NON-WELDED TECHNOLOGY please feel free to email us at sales@dljierui.com. Thanks for your interest in our products.
