Retaining Ring Flange according to SAE J518/ISO 6162
Type:RF3000...W...BSF
Retaining Ring Flange System is used for piping systems with a maximum allowable working pressure of 420 bar. The system is typically used with working pressures in the range of 210-350 bar.
Retaining Ring Flange connection for welding
Type：Retaining ring type
Standard：SAE J518, ISO6162, ISO6164
Size：1/2"-5"
OD of tube: 20mm-150mm (thickness≥7mm)
Pressure：3000Psi, 6000Psi, 42Mpa
Material：Carbon steel, 316L
Seal: NBR, FKM
Country/Region of Origin Code: China
Brand:JIERUI

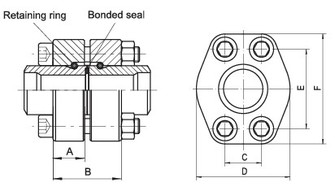

Flange dimensions
Markets:
• Automotive
• Clean energy
• Marine engineering
• Industrial
• Rail Transit
• Oil and Gas
• Transportation
• Special vessel
• Agricultural machinery
JIERUI's products, services and solutions are time-tested and are qualified in harsh conditions.
If you have any inquiries or need details about Retaining Ring Flange,pls mail us at sales@dljierui.com. Thanks for your interest in our products.
